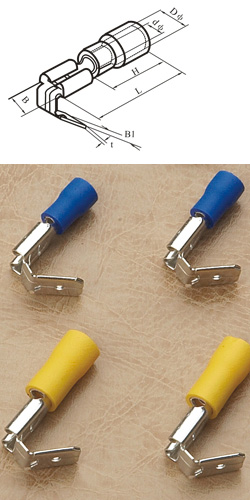

Piggy Back Terminals

Piggy Back Terminals

0.5～1.5mm2(22-16) Imax=10A

Item No. Mema TAB Thickness(mm) Dimension(mm)
B B1Ф  H DФ dФ L
PBDD1.25 - 250 0.8 x 6.35 7.4 6.35 10.0 3.8 1.7 21.5 19.0

1.5～2.5mm2(16-14) Imax=15A

Item No. Mema TAB Thickness(mm) Dimension(mm)
B B1Ф  H DФ dФ L
PBDD2 - 250 0.8 x 6.35 7.4 6.35 10.0 4.3 2.3 21.5 19.0

4～6mm2(12-10) Imax=24A

Item No. Mema TAB Thickness(mm) Dimension(mm)
B B1Ф  H DФ dФ L
PBDD5.5 - 250 0.8 x 6.35 7.4 6.3 13.0 5.7 3.4 25.0 19.0
