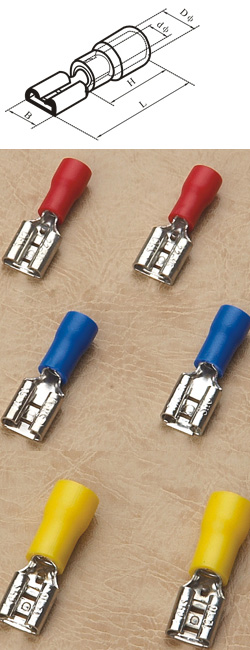

Famale Insulating Terminals

Famale Insulating Terminals

0.5～1.5mm2(22-16) Imax=10A

Item No. Mema TAB Thickness(mm) Dimension(mm)
B dФ DФ L H
FDD1.25-110(5) 0.5×2.8 0.3 3.8 1.70 3.80 19.0 10.0
FDD1.25-110(8) 0.8×2.8 0.3 3.8 1.70 3.80 19.0
FDD1.25-187(5) 0.5×4.75 0.35 5.6 1.70 3.80 19.0
FDD1.25-187(8) 0.8×4.75 0.35 5.6 1.70 3.80 19.0
FDD1.25-205 0.5×5.2 0.35 6.5 1.70 3.80 20.0
FDD1.25-250 0.8×6.35 0.4 7.4 1.70 3.80 21.0

1.5～2.5mm2(16-14) Imax=15A

Item No. Mema TAB Thickness(mm) Dimension(mm)
B dФ DФ L H
FDD2-110(5) 0.5×2.8 0.3 3.8 2.3 4.3 19.0 10.0
FDD2-110(8) 0.8×2.8 0.3 3.8 2.3 4.3 19.0
FDD2-187(5) 0.5×4.75 0.35 5.6 2.3 4.3 19.0
FDD2-187(8) 0.8×4.75 0.35 5.6 2.3 4.3 19.0
FDD2-205 0.5×5.2 0.35 6.5 2.3 4.3 20.0
FDD2-250 0.8×6.35 0.4 7.4 2.3 4.3 21.0
FDD2-312 0.8×8.0 0.4 9.0 2.3 4.3 23.0

4～6mm2(12-10) Imax=24A

Item No. Mema TAB Thickness(mm) Dimension(mm)
B dФ DФ L H
FDD5.5-187 0.5x4.75 0.4 5.6 3.4 5.7 23.0 14.0
FDD5.5-250 0.8×6.35 0.4 7.4 3.4 5.7 25.0
FDD5.5-375 1.2×9.4 0.5 10.9 3.4 5.7 29.6
