Combination Tools
Plastic Box
Features:
Combination Tools for Plastic Box
- Easy to carry.
Technical Data
| Model | Range of Application | Crimping Tools | Crimping Tool Kits | Dimension (mm) |
Weight (kgs) |

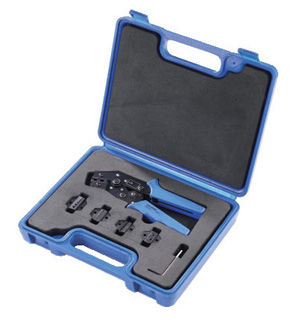

| SN0725-5D1 |    Naked Terminals Insulated Terminals Cord End Terminals |
SN-0725 | SN-02B, SN-02WF SN-60WF, SN-02 |
275x25x61 | 1.08 |
| LY05H-5A2 |  Coaxial Cable |
Cutter LY-206, HT-312B Crimping Tools LY-05H |
LY-02H, LY-02HI, LY-1741, LY457 |
347x23x72 | 1.81 |
| LY03C-5D3 | LY-03C | LY-03B, LY-04WF LY-16WF, LY-10 |
277x22x61 | 1.33 |
Package
Features:
Combination Tools for Pakage
- Easy to carry.
Technical Data
| Model | Tools (1x) |
Capacity (mm2) |
Dimension (mm) |
Weight (kgs) |
|||
| Crimping | Strip | Wrench | Kits | ||||
| C8K-D364A | HSC8 6-4 FS-D3 Strip |
0.5~6 | 0.25~6 | - | - | 200x95x50 | 0.65 |
| C8K-D366 | HSC8 6-6 FS-D3 Strip |
0.5~6 | 0.25~6 | - | - | 200x95x50 | 0.65 |
| FSBK-D3B | FSB-0525YJ FS-D3 Strip T20 Hex Wrench B056TD Kits |
0.5~2.5 | 0.25~6 | 4x100 | 0.5~6 | 272x121x63 | 0.65 |
| SNK-D302CA | SN-02CA FS-D3 Strip H02 Hex Wrench N06WF, N0325 Kits |
0.25~2.5 | 0.25~6 | 2.5x100 | 0.5~6 | 200x95x50 | 0.65 |
| FSK-30JN | HS-30J PH Screw S1016, S03B, S26TW, S35WF Kits |
0.5~6 | - | 6x10 | 0.5~35 | 272x121x63 | 1.10 |
| FSK-056YJD | FSK-056YJD T20 Hex Wrench A1510TX, A0510TD, A616TD, A2056 Kits |
0.5~6 | - | 4x100 | 1.5~35 | 272x121x63 | 1.30 |
| FSK-10N | HS-10 FSA-0626 Strip PH Hex Wrench S04WFL, S03C, S103, S03B Kits |
0.5~6 | 0.5~6 | 6x10 | 0.5~6 | 272x121x63 | 1.10 |
| FSK-0725N | SN-0725 FSA-0626 Strip H02 Hex Wrench N0325, N11011, N06WF, N16WF Kits |
0.5~6 | 0.25~6 | 2.5x100 | 0.25~16 | 272x121x63 | 0.85 |
| FSBK-054YJ | FSB-0525YJ YF044 Strip T20 Hex Wrench B0525YJ, B056GT B616GT, B056TD Kits |
0.5~2.5 | 0.25~6 | 4x10 | 0.5~6 | 200x95x50 | 0.70 |
| FSCK-616TD | FSC-616TD YF044 Strip T20 Hex Wrench C416TX, C0510GF C56YJ, C2550GF Kits |
4~16 | 0.25~6 | 4x10 | 0.5~50 | 272x121x63 | 1.25 |
| FSAK-56YJ | FSA-056YJ YF044 Strip T20 Hex Wrench A1035GF, A625GF A2056GF, A0510TD Kits |
0.5~6 | 0.25~6 | 4x10 | 0.5~35 | 272x121x63 | 1.30 |
